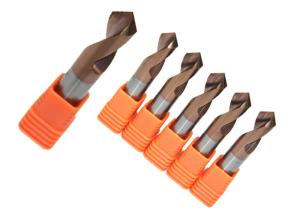

60 Degree Chamfer Mill Tungsten Carbide Center Cutting AlTiN or TiSiN Coating
Adnantages
• Increased Productivity
• High Performance
• Fast Cutting – Cuts up to 75% faster than conventional end mills while virtually eliminating loading and chatter when set up properly
• Clean Finish – Faster chip clearing design provides a better surface finish
Specifications
D600 centering chamfer cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.8μm. There are two categories for aluminum and steel respectively. The centering chamfer cutter for steel is coated by imported coating equipment (black / Bronze), especially suitable for aluminum, copper, ordinary medium and low carbon steel, alloy steel and other materials processing. With high precision quality control, and full inspection, all D600 series end mills are delivered with 100% qualification rate.
| Raw Material | YL10.2 /K30 |
| WC | 90% |
| Co | 10% |
| TRS | >4100N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm-100mm |
| Grain size | 0.8 μm |
| Upto | HRC55 |
| Flutes No | 2F |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV): | 3200 | 3600 |
| Thickness(μm): | 2.5-3 | 3 |
| Oxidation Temp(°): | 900 | 1000 |
| frictional Coefficient: | 0.3 | 0.45 |
| Color: | Black | Copper |
Standard Sizes
| Size | Flute Length(mm) | the Degrees of Angle |
| D4*50 | 8 | 60° 90° 120° |
| D4*100 | 8 | 60° 90° 120° |
| D6*50 | 12 | 60° 90° 120° |
| D6*100 | 12 | 60° 90° 120° |
| D8*60 | 16 | 60° 90° 120° |
| D8*100 | 16 | 60° 90° 120° |
| D10*75 | 20 | 60° 90° 120° |
| D10*100 | 20 | 60° 90° 120° |
| D12*75 | 24 | 60° 90° 120° |
| D12*100 | 24 | 60° 90° 120° |
| D16*100 | 32 | 60° 90° 120° |
| D20*100 | 40 | 60° 90° 120° |
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer almost 10 years.
Q: What is your advantage?
A: Always prioritizes high quality and competitive price;
Good technology support is a strong backing for our products;
We support you with good service, payment terms, lead time and logistics control.
Q: Is OEM available?
A: Yes, OEM and customization are available.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-35days after receiving the advance payment.
